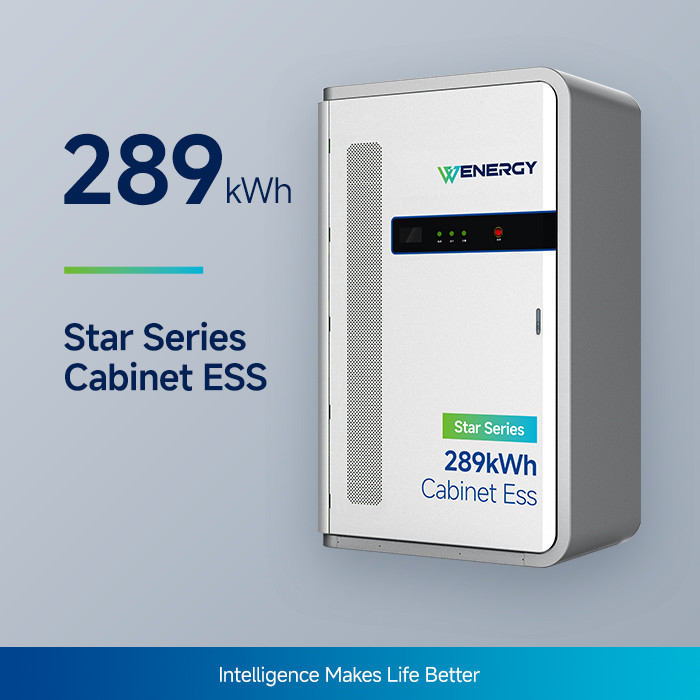

Name: Modular 289kWh Commercial Battery Storage Systems All In One Cabinet ESS
Brand: Wenergy Technologies Pte.Ltd.
SKU: Star 289kWh
Availability: InStock

Modular 289kWh Commercial Battery Storage Systems All In One Cabinet ESS

Brand Name:	Wenergy
Certification:	GB/T 36276, GB/T 34131, GB/T 34120, IEC62619, UL1973, UL9540A, UN 38.3, IEC/EN 61000
Model Number:	Star 289kWh
Minimum Order Quantity:	Negotiable
Rated Energy:	289kWh

Product Details

Brand Name

Wenergy

Certification

GB/T 36276, GB/T 34131, GB/T 34120, IEC62619, UL1973, UL9540A, UN 38.3, IEC/EN 61000

Model Number

Star 289kWh

Rated Energy:

289kWh

Minimum Order Quantity

Negotiable

Highlight:

289kwh energy storage battery system

289kwh commercial battery storage systems

anti corrosion commercial battery storage systems

Product Description

Application Scenarios

Industrial and Commercial Use

Product Highlights

Seamless Integration and Robust Safety

Streamlined design facilitates effortless plug-and-play installation.
Boasts IP54 protection and has undergone rigorous safety assessments, including electrical, system, electrochemical, and mechanical tests.
Outer box exhibits C4H-level corrosion resistance, ensuring a service life exceeding 15 years.

Efficiency, Flexibility, and User-Centric Design

Modular construction supports parallel use and offers versatility with flexible load configurations.
Machine App provides real-time monitoring of product operations and revenue data.

Cutting-Edge Battery Management and Security

iBMS enables precise and personalized battery life cycle safety management.
State-of-the-art SOC Correction Algorithm enhances SOC accuracy and extends battery life significantly.

Comprehensive Cloud Security Measures and Temperature Control

24/7 full-dimensional security alerts ensure battery safety.
Thorough thermal simulation analysis tailored for complex environmental conditions.

Model	Star 289
System Parameters
Battery Type	LFP
Rated Capacity	289kWh
Rated Power	125kW
Cooling Type	Liquid Cooled
IP Protection Level	IP54
Corrosion-proof Grade	C4H
Fire Protection System	Aerosol Fire Fighting
Noice	＜65dB (1m Away from the System)
Dimension	(1588±10)(1380±10)(2450±10)mm
Weight	3050±150kg
Working Temp. Range	-30℃~55℃ (Derating When＞45℃)
Relative Humidity Range	0~ 95 % (Non-condensing)
Communication Interface	RS485 / CAN
Communication Protocol	Modbus RTU
Cycle Life	≥10000
System Certification	GB/T 36276, GB/T 34131, GB/T 34120, IEC62619, UL1973, UL9540A, UN 38.3, IEC/EN 61000
Max. Efficiency of System	＞89%
Quality Guarantee	≥5 Years
EMS	Possess
Application Scenarios	New Energy Generating, Distributed Generating,Micro-grid ESS, EV Charge, City ESS, Industrial & Commercial ESS, etc.
DC Battery Parameters
Rated Voltage	921.6V
Voltage Range	720 ~ 1000V
Charge & Discharge Ratio	0.5P
Max. Input DC Power	135kW
AC Side Parameters
Rated AC Voltage	400V
Rated Output Frequency	50/60Hz
Rated Power	135kW
Rated Current	196A
Max. AC Power	162kW (60S 25℃)
AC/DC Converter Grid-connected Certification	GB/T 34120-2017, GB/T 34133CE, EN50549-1:2019+AC.2019-04, CEI 0-21, CEI 0-16, NRS097-21-1:2017, EN50549, C10/11:2019, EN50549-1&10, G99, VDE-AR-N 4105, VDE-AR-N 4110, VDE-AR-N 4120, UNE 217002, UNE 217001, NTS631, TOR Erzeuger, NRS 097-2-1, AS 4777.2

System Composition

The system consists of battery cluster (6 packs), PDU, PCS, thermal management system, fire extinguishing system, EMS, etc.

Modular 289kWh Commercial Battery Storage Systems All In One Cabinet ESS 0

System Layout

No.	Serial number	Name
1	A	Main Circuit Breaker
2	B	PCS
3	C	Liquid Cooling System
4	D	Fire Extinguishing System
5	E	Battery Pack
6	F	PDU
7	G	EMS
8	H	Emergency Button
9	J	Display
10	K	Indicator
