/ Application Scenarios
New Energy Generating, Distributed Generating, Micro-grid ESS, EV Charge, City ESS, Industrial & Commercial ESS, etc.
/ Product Highlights
Advanced Integration and Safety
- Integrated design allows for plug-and-play installation.
- IP54 protection level ensures safety.
- Endures comprehensive safety tests for electrical, system, electrochemical, and mechanical aspects.
- C4H anti-corrosion level guarantees over 15 years of service life.
Efficiency and Flexibility
- Modular design supports parallel use.
- Adaptable load configuration for various scenarios.
Smart Monitoring and Management
- Machine App enables real-time monitoring of operations and revenue data.
Cutting-Edge Technology
- iBMS ensures personalized battery life cycle safety management.
- SOC Correction Algorithm enhances accuracy and extends battery life.
- Cloud Security Warning provides round-the-clock battery safety assurance.
- Thorough thermal simulation analysis ensures suitability for complex environments.

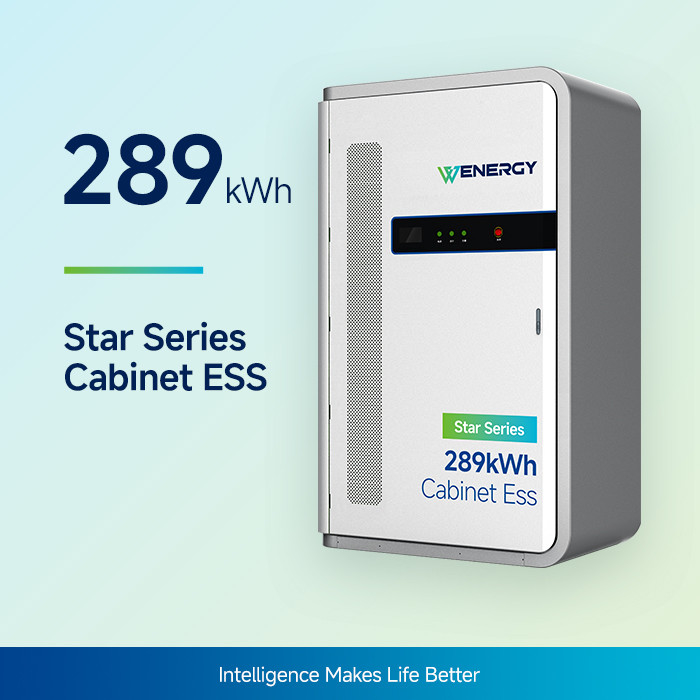

| Model |
Star 289 |
| System Parameters |
| Battery Type |
LFP |
| Rated Capacity |
289kWh |
| Rated Power |
125kW |
| Cooling Type |
Liquid Cooled |
| IP Protection Level |
IP54 |
| Corrosion-proof Grade |
C4H |
| Fire Protection System |
Aerosol Fire Fighting |
| Noice |
＜75dB (1m away from the System) |
| Dimension |
(1588±10)*(1380±10)*(2450±10)mm |
| Weight |
3050±150kg |
| Working Temp. Range |
-30℃~55℃ (Derating When＞45℃) |
| Relative Humidity Range |
0~ 95 % (Non-condensing) |
| Communication Interface |
RS485 / CAN |
| Communication Protocol |
Modbus RTU |
| Cycle Life |
≥10000 |
| Max. Efficiency of the System |
＞89% |
| Quality Guarantee |
≥5 Years |
| EMS |
Possess |
| Application Scenarios |
New Energy Generating, Distributed Generating, Micro-grid ESS, EV Charge, City ESS, Industrial & Commercial ESS, etc. |
| DC Battery Parameters |
| Rated Voltage |
921.6V |
| Voltage Range |
720 ~ 1000V |
| Charge & Discharge Ratio |
0.5P |
| Max. Input DC Power |
125kW |
| AC Side Parameters |
| Rated AC Voltage |
400V |
| Rated Output Frequency |
50/60Hz |
| Rated Power |
125kW |
| Rated Current |
196A |
| Max. AC Power |
162kW (60S 25℃) |
AC/DC Converter
Grid-connected Certification |
IEC 62619, IEC 60730-1, IEC 63056,IEC 62933,IEC 62040 , IEC 62477-1,IEC 60529,UN 38.3, CE Marking,RF/EMC ,VDE-AR-E 2510-50 , UKCA (IEC 62477-1), UKCA (CE-EMC Transfer),UL 1973,UL 9540,UL 9540A,NFPA 855 , NFPA 68/69,FCC ,ICASA RF, GMA-SABS |
/ System Composition
The system consists of a battery cluster (6 packs), PDU, PCS, thermal management system, fire extinguishing system, EMS, etc.
/ System Layout
|
No.
|
Serial number
|
Name
|
| 1 |
A |
Main Circuit Breaker
|
| 2 |
B |
PCS
|
| 3 |
C |
Liquid Cooling System
|
| 4 |
D |
Fire Extinguishing System
|
| 5 |
E |
Battery Pack
|
| 6 |
F |
PDU
|
| 7 |
G |
EMS
|
| 8 |
H |
Emergency Button
|
| 9 |
J |
Display
|
| 10 |
K |
Indicator
|
/ Wenergy C&I ESS Solutions
● Photovoltaic Storage
● Peak Load and Frequency Regulation
● Backup Power Supply
● Peak-Valley Arbitrage
/ ESS Cabinet Project Case Study
● C&I Energy Storage Project (PV + Energy Storage)
Location: Germany
System Configuration:
20kWp PV+258kWh ESS Cabinet
Daylight powers loads, excess charges storage.
Low sunlight uses both solar and storage.
Grid supplements storage ＜ 80% SOC at night.
● C&I Energy Storage Project ( battery materials industry )
Location: China
Scale : 1.44MW/3.096MWh
System Configuration:
12*258kWh ESS Cabinet Connected to 10/0.4kV-2500kVA Transformer
Est. Total Discharge: 998.998 MWh
System Efficiency: 88%
