/ Application Scenarios
PV power
Wind power
Power grid side
Industry and commerce
/ Product Highlights
Cost-Effective and Adaptive Design
Multi-Scenario Support: Optimized for peak shaving, valley filling, and auxiliary services, significantly reducing energy costs.
Smart Algorithms and Temperature Control: Advanced sensing, big data analytics, and AI-driven algorithms optimize system efficiency, lower LCOE, and ensure stable cell performance.
Unmatched Safety and Reliability
Comprehensive Monitoring and Fault Isolation: Cloud-edge-device synergy enables rapid fault diagnosis, while multi-level protection ensures coordinated component and system response.
AI-Powered Thermal Management: Enhances system reliability and extends battery lifespan.
Full Lifecycle Oversight: Guarantees consistent performance and long-term quality.
Intelligent and Grid-Friendly Operation
Fast Grid Support: Provides active grid stabilization and rapid response to fluctuations.
Efficient and Flexible Integration: Intelligent algorithms maximize efficiency and system lifespan, while multiple access options ensure seamless connectivity.
Modular and Scalable Solutions
Easy Deployment and Maintenance: Modular design simplifies installation and upkeep.
High Scalability: Compatible with growing energy demands and supports parallel operation for wide capacity coverage.
/ System Parameter
|
Category
|
Name
|
Specification Parameters
|
|
System Parameters
|

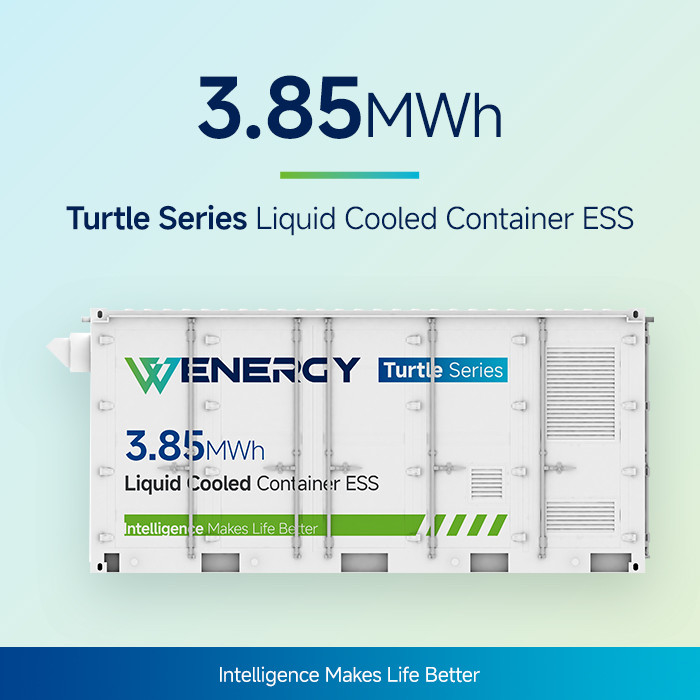

Nominal Energy (kWh)
|
3858
|
| Maximum Cycle Efficiency |
>89% |
| Level of Protection |
IP54 |
| Auxiliary Power Supply |
Self-powered/externally powered |
| Operating Humidity Range |
0~95% |
| Operating Temperature Range(℃) |
-15~50 |
| Maximum Operating Altitude (m) |
4000 (greater than 2000 derating) |
| Cooling Method |
Intelligent liquid cooling |
| Fire Safety Configuration |
Aerosol fire fighting and five-in-one detection |
| Newsletter |
RS485/CAN |
| Weight (T) |
≤36 |
Container Dimensions
(L × W × H, mm) |
6058×2438×2896 |
| Direct Current Parameters |
Maximum DC Voltage (V) |
1401.6 |
| Minimum DC Voltage (V) |
960 |
| Rated Current on DC Side (A) |
1570 |
Maximum Continuous Current
on DC Side (A) |
1600 |
/ System Composition
The system is composed of battery clusters (10 clusters, each with 8 modules), a high-voltage box, a combiner cabinet, a thermal management system, and a fire protection system. The system includes external communication capabilities, enabling data transmission with external equipment such as the HMI, PCS, and fire protection devices, ensuring safe and stable long-term operation.
/ System Layout
| Serial Number |
Name |
| 1 |
Audible and Visual Alarm |
| 2 |
Nameplate |
| 3 |
Fire Control Box |
| 4 |
Earth Connection Point |
| 5 |
Mounting Angle (Optional) |
| 6 |
Air Inlet |
| 7 |
Air Outlet |
| 8 |
Fire Outlet |
| 9 |
Combiner Cabinet |
| 10 |
Container Box |
| 11 |
Battery Module |
| 12 |
Thermal Management System |
| 13 |
Fire Protection System |
| 14 |
High Voltage Box PDU |
| 15 |
Liquid Cooling Unit |
