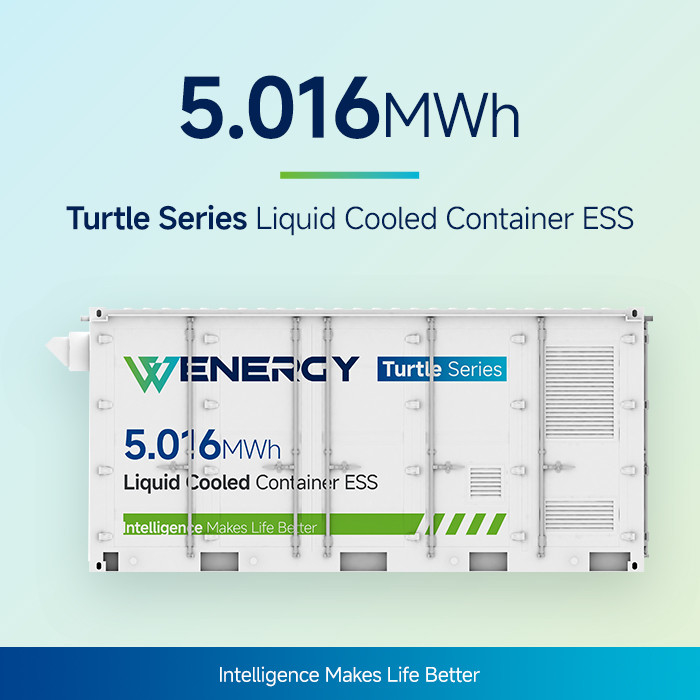

Our 5MWh Utility-Scale Battery Energy Storage System (BESS) Container is designed for a wide range of grid and utility applications, including:
Grid Energy Storage: Enhance grid stability and reliability with fast-response energy storage solutions.
Renewable Energy Integration: Smooth the intermittency of solar and wind power, enabling higher renewable energy penetration.
Peak Shaving and Load Shifting: Reduce peak demand charges and optimize energy costs through intelligent energy management.
Frequency Regulation: Provide rapid frequency response to maintain grid balance and prevent outages.
Backup Power Supply: Ensure uninterrupted power for critical infrastructure during grid failures.
Microgrid and Off-Grid Solutions: Support remote or islanded grids with reliable, scalable energy storage.
/ Product Highlights
● Cost and Space Efficiency
Integrated Design: Easy installation, operation, and maintenance, reducing overall costs.
High Energy Density: 5.016MWh in a 20-ft container, saving 30% space vs. traditional 3.44MWh systems.
Large Module Design: 50% more robust than conventional energy solutions.
● Advanced Safety
Battery Balancing: Ensures consistent performance and extended lifespan.
Fire Suppression: Integrated gas and water extinguishing for extreme conditions.
Durable Construction: C4H-level corrosion resistance with a 15+ year service life.
● Superior Efficiency
1500V Platform: Up to 93% DC side efficiency for minimal energy loss.
Real-Time Monitoring: Cloud-based system for seamless operation and quick issue resolution.
/ Quality Assurance
5 Years for Equipment, 10 Years for Battery Performance.
/ System Parameter
| Category |
Item |
Specifications |
| System Parameter |
Rated Capacity (KWh) |
5016 |
| Maximum Cycle Efficiency |
>89% |
| Protection Level |
IP54 |
| Auxiliary Power Supply |
Self-Powered /Externally Powered |
| Working Humidity Range |
0~95% |
| Working Temperature Range (℃) |
-15~50 |
| Maximum Working Altitude (M) |
4000(> 2000 Derating) |
| Cooling Method |
Smart Liquid Cooling |
| Fire Extinguishing Configuration |
Aerosol Fire Protection, Temperature Detection,Smoke Detection, Audible and Visual Alarm |
| Communication |
RS485/CAN/Ethernet |
| Weight (T) |
≤43 |
| Container Size (L × W × H, Mm) |
6058×2438×2896 |
| DC Parameter |
Maximum DC Voltage (V) |
1497.6 |
| Minimum DC Voltage (V) |
1164.8 |
| DC Side Rated Current (A) |
1884 |
| DC Side Maximum Current (A) |
2154 |
/ System Components
The system consists of battery clusters (6 clusters, each cluster has 8 packs), PDU, DC combiner box, EMS, thermal management system, fire extinguishing system, etc. The system has external communication functions and can transmit data with external supporting HMI, PCS, fire protection and other equipment, and can continue to operate safely and stably for a long time.
/ System layout
| No. |
Name |
| 1 |
Audible and Visual Alarm |
| 2 |
Nameplate |
| 3 |
Fire Control Box |
| 4 |
Ground Point |
| 5 |
Air Inlet |
| 6 |
Air Outlet |
| 7 |
Fire Extinguishing Water Outlet |
| 8 |
DC Combiner Box |
| 9 |
Fire Extinguishing System |
| 10 |
Battery Module |
| 11 |
High-Voltage Box (PDU) |
| 12 |
Thermal Management System |
| 13 |
Liquid Cooling Unit |
| 14 |
Combiner Cabinet |
/ Software: Smart Energy, Smart Choices
• iEMS The“Brain”of Energy Storage System
Platform Connection | Statistics | Energy Management | Monitoring
• iBMS Intelligent Battery Management
Information Collection | Security Management | State Estimation |
Charge and Discharge Management | Balance Management
• 7*24 Hours ▏360 Degrees ▏30+ Cloud Security Policy
/ ESS Container Project Case Study
PV + Energy Storage + Diesel Generator
Location: Zimbabwe
Phase 1: 12MWp Solar PV + 3MW/6MWh ESS
Phase 2: 9MW/18MWh ESS
Est. Daily Electricity Savings: 80,000 kwh
Est. Cost Recovery in <28 Months
- C&I Energy Storage Project( cement industry )
PV + Energy Storage
Location: China
Scale : 4MW/8MWh
Est. Total Discharge: 6 Million kWh
Est. Daily Cost Savings: ＞ $136.50
Cumulative Savings: ＞ $4.1 Million
System Efficiency: 88%
Annual Carbon Reduction: 3,240 tons
