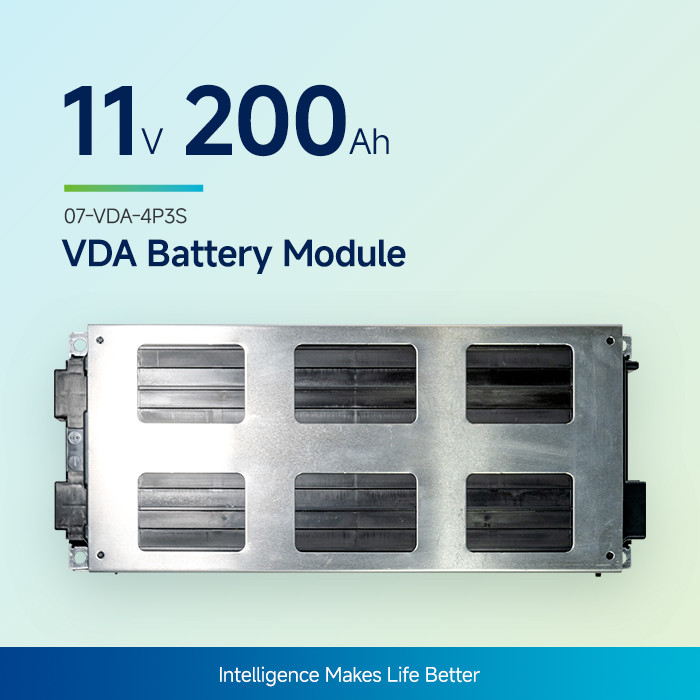

Name: 2.2KWh 3S4P Configuration EV Lithium Battery Pack Module Liquid Cooled
Brand: Wenergy Technologies Pte.Ltd.
SKU: 07-VDA-4P3S-11.1V200Ah
Availability: InStock

2.2KWh 3S4P Configuration EV Lithium Battery Pack Module Liquid Cooled

Brand Name:	wenergy
Certification:	MSDS, UN38.3, CE, CB, IEC 62619
Model Number:	07-VDA-4P3S-11.1V200Ah
Packaging Details:	Carton case
Supply Ability:	2000 pcs /day
Voltage:	11.1V

Product Details

Brand Name

wenergy

Certification

MSDS, UN38.3, CE, CB, IEC 62619

Model Number

07-VDA-4P3S-11.1V200Ah

Voltage:

11.1V

Packaging Details

Carton case

Supply Ability

2000 pcs /day

Highlight:

Liquid Cooled EV Lithium Battery Pack

2.2KWh 200Ah electric vehicle battery pack

Product Description

2.2KWh 3S4P Configuration 11.1V200Ah EV battery module for liquid cooled electric vehicle

No.	Item	Performance
1	Nominal Capacity	200Ah ,1/3C(25±2℃,2.8V~4.4V)
2	Nominal Voltage	11.1V
3	Charge Ending Voltage	Suggest cutting off the maximum voltage of a single unit to 4.3V
4	Discharge Ending Voltage	0℃≤temperature≤55℃	Suggest cutting off the minimum voltage of a single unit to 3.0V
		-30℃≤temperature＜0℃	Suggest cutting off the minimum voltage of a single unit to 2.4V
5	Standard Charging Method	25±2℃ 0.5C Charge the battery with a constant current until the highest voltage of the unit reaches 4.3V, and then charge it in a constant voltage mode until the charging current reaches ≤ 0.05C and stops
6	Max. Constant Charging Current	1C
7	Max. Pulse Charging Current	1.5C (25±5℃,50%SOC) ≤30S
8	Standard Discharging Current	25±2℃ 1C constant current discharge until the lowest single voltage reaches 3.0V
9	Max. Constant Discharging Current	1C
10	Max. Pulse Discharging Current	3C (25±5℃) ≤30S
11	Operating environment	Charging: 0 ℃~55 ℃, max. 90% RH Discharge: -30 ℃~55 ℃, max. 90% RH All of the above believe that there is no heating system. If there is a heating system, it should be considered based on the actual situation
12	Module weight	10.3±0.3 kg
13	Energy Density	Around 215.5Wh/kg
14	Insulation performance	≥500MΩ
15	Pressure resistant performance	2700VDC, leakage current<1 mA

VDA Battery module list

Name	Parameter
Cell model	SEPNi11100302P(NCM)
Configuration	3P4S	2P6S	1P12S	4P3S
Module rated voltage(V)	14.8V	22.2V	44.4V	11.1V
Module capacity(Ah)	150	100	50	200
Energy (kWh)	2.22	2.22	2.22	2.22
Application	Electric School Bus, Electric commercial truck
