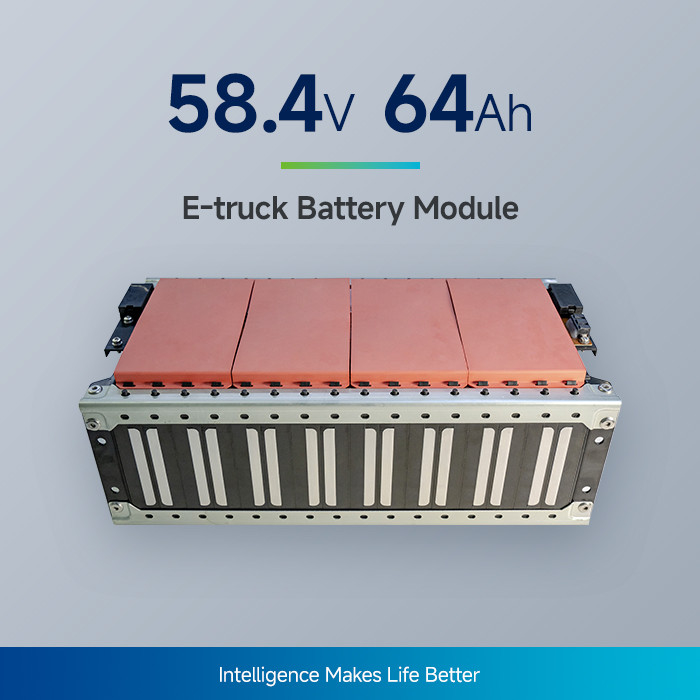

Name: 58.4V64Ah Good Safety Electric Vehicle Battery Module For Medium Duty Truck
Brand: Wenergy Technologies Pte.Ltd.
SKU: EV-58.4V64Ah
Availability: InStock

58.4V64Ah Good Safety Electric Vehicle Battery Module For Medium Duty Truck

Brand Name:	wenergy
Certification:	MSDS, UN38.3, CE, CB, IEC 62619
Model Number:	EV-58.4V64Ah
Packaging Details:	Wooden case
Supply Ability:	1000 Set/Sets Per Month
Voltage:	58.4V

Product Details

Brand Name

wenergy

Certification

MSDS, UN38.3, CE, CB, IEC 62619

Model Number

EV-58.4V64Ah

Voltage:

58.4V

Packaging Details

Wooden case

Supply Ability

1000 Set/Sets Per Month

Highlight:

Medium Duty Truck Lithium Battery Module

58.4V64Ah Electric Commercial Vehicle Battery Module

64Ah Pouch NMC Ev Battery Module

Product Description

58.4V64Ah good safety electric commercial vehicle battery module for Medium duty truck

Specification

No.	Item	Specification
1	Nominal Capacity	64Ah ,0.5 C discharging(25±2℃)
2	Typical Capacity	65Ah ,0.5 C discharging(25±2℃)
3	Minimum Capacity	63Ah ,0.5 C discharging(25±2℃)
4	Nominal Voltage	58.4V
5	Charge Ending Voltage	67.2V
6	Discharge Ending Voltage	0℃≤T(Temperature)≤55℃	48V
		-20℃≤T(Temperature)≤0℃	38.4V
7	Standard Charging Method	25±2℃ 0.5C constant current charge to 67.2 V, then constant voltage 67.2V charge till charged current declines to ≤ 0.05C
8	Max. Constant Charging Current	1C (15℃～45℃)
9	Max. Pulse Charging Current	1.5C (15℃～45℃)≤30S
10	Standard Discharging Current	25±2℃ 0.5C constant current discharge to 48.0V
11	Max. Constant Discharging Current	1C
12	Max. Pulse Discharging Current	3C (15℃～45℃)≤30S
13	Operating environment	Charging:-10℃~55℃, max.90%RH Discharging: -20℃~55℃, max.90%RH
14	Module Weight	22.0±0.6 kg
15	Energy Density	170 Wh/kg

Battery module features

1. Battery cell energy density over to 220wh/kg ,with high energy density NCM cathode material

2. The battery module is special designed for electric truck and electri terminal tractor with high charge and discharge performance .

3. Battery module can be desighed to several battery models with different configurate to suitable for various commercial truck , the module capacity as follow 36.5V128Ah ,43.8v128Ah, 51.1V128AH ,58.4V64Ah

4.Battery module outter package is wooden case have granted by international export transpotation rules UN38.3 and IATA

5.Wide range of Application scenarios that is utilized in varity of electric commercial truck like Electric Transit truck,Electric Food truck,Electric Dump truck ,Electric Tipper truck ,Electric cargo van and pick up truck .

32 Ah electric truck battery module list

Name	Parameter
Cell model	SEPNi11217127P(NCM)
Configuration	4P6S	4P8S	4P10S	4P12S	4P14S	5P6S
Module rated voltage(V)	21.9	29.2	36.5	43.8	51.1	21.9
Module capacity(Ah)	128	128	128	128	128	160
Energy (KWh)	2.803	3.737	4.672	5.606	6.541	3.504
Application	Electric delivery truck , electric Dump/Tipper truck, Electric Reefer truck
