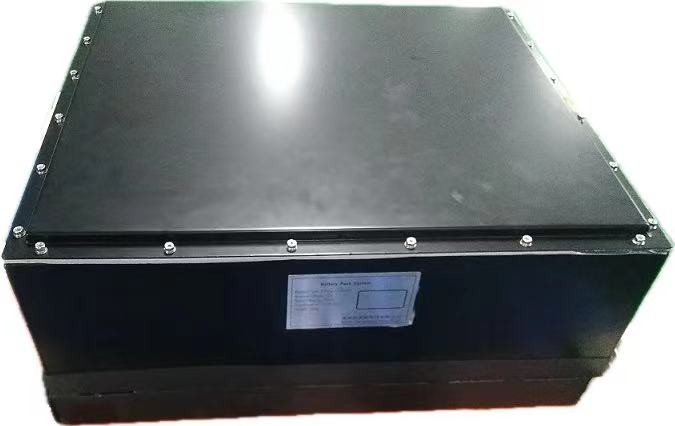

Name: 72v100Ah Lithium Battery Pack For Electric Four Wheels Vehicle Golf Carts Tricycle
Brand: Wenergy Technologies Pte.Ltd.
SKU: 72V100Ah
Availability: InStock

72v100Ah Lithium Battery Pack For Electric Four Wheels Vehicle Golf Carts Tricycle

Brand Name:	WEnergy
Certification:	CE/MSDS/UN38.3/IATF16949
Model Number:	72V100Ah
Packaging Details:	Wooden package
Supply Ability:	1000 Set/Sets Per Month
Voltage:	72V

Product Details

Brand Name

WEnergy

Certification

CE/MSDS/UN38.3/IATF16949

Model Number

72V100Ah

Voltage:

72V

Packaging Details

Wooden package

Supply Ability

1000 Set/Sets Per Month

Highlight:

IP67 72 volt golf cart battery

OEM 100Ah 72v golf cart battery

Product Description

The battery pack Model: EV-002-72100-01, With Rated Voltage 72V, Rated Capacity 100AH. 72V100Ah battery pack power supply is composed by 40 pcs of 3.6V 50AH battery Module in 20S8P.

Project	Parameter
Voltage Range	60V---84V(72V)
Battery System Whole Energy (KWH) 23±2℃,1/3C	Rated :7.2kWh
Battery System Whole Capacity(Ah) 23±2℃,1/3C	Rated :100Ah
Capacity difference for Modules(Ah)	≤1.5Ah
Battery Cell Configuration	4P1S
Battery system Working Temperature (℃)	Discharge-20~55℃,Charge -10~55℃
Battery system Surrounding environment relative humidity	5%~95%
Battery system storage Temperature	-20～25℃(3-6 Month,50%SOC) -20～45℃(1-3 Month,50%SOC) -20～60℃(≤1 Month,50%SOC)
Battery system Max. charging current	100A
Battery system Max. Instance discharging current (10s)	300A
Battery system standard discharging current	100A
Battery system instant discharging current (Max.) (30s)	250A
Battery system Max. Continuous discharging current (30min)	100A
Insulation Resistance Testing( Ω) (Main positive&Main Negative VS Battery case	≥20MΩ
Battery system on Vehicle Waterproofing class	IP67
Cooling system	Air Cool
