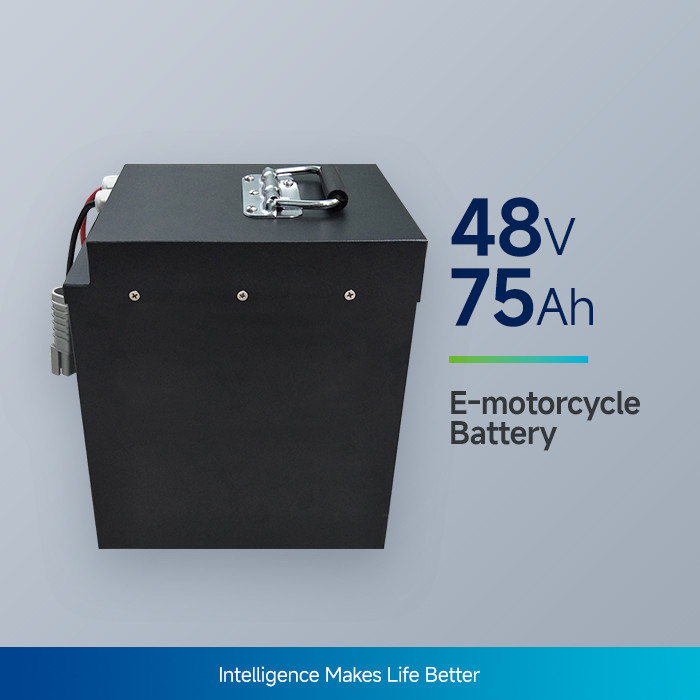

Name: 48V75Ah Lithium Battery Pack For Electric Motorcycle And Scooter Tricycle
Brand: Wenergy Technologies Pte.Ltd.
SKU: 48V75Ah
Availability: InStock

48V75Ah Lithium Battery Pack For Electric Motorcycle And Scooter Tricycle

Brand Name:	wenergy
Certification:	Compliance with MSDS, UN38.3, CE, CB, IEC 62619
Model Number:	48V75Ah
Packaging Details:	Wooden case
Supply Ability:	3000 sets per month
Voltage:	48V

Product Details

Brand Name

wenergy

Certification

Compliance with MSDS, UN38.3, CE, CB, IEC 62619

Model Number

48V75Ah

Voltage:

48V

Packaging Details

Wooden case

Supply Ability

3000 sets per month

Highlight:

48V75Ah lithium battery for electric motorcycle

48V75Ah electric scooter battery pack

IP65 48v lithium golf cart battery

Product Description

Product introduction

The whole battery pack was assembled in one battery case which including battery module,one set of PCB system,charge and discharge wire which with andersonconnectors,collection wire harness,fuse,charger etc.

Product Specification

Item	Parameter
Voltage Range	39V---54.6V(48V)
Battery system whole energy(KWh) 23±2℃,1/3C	Rated:3.6kWh
Battery system whole capacity (Ah)23±2℃,1/3C	Rated:75Ah
SingelCell model	SEPNi7688190-12.5Ah
Cell configuration	6P13S
Battery system working temperature(℃)	Discharge-20~45℃,charge0~45℃
Battery surrounding environment relative humidity	10%~85%
Battery storage temperature	-20～45℃
Battery standard charging current(23±2℃) (23±2℃)	15A
Battery Max charging current(23±2℃) (23±2℃)	37.5A
Battery standard discharging current(23±2℃) (23±2℃)	37.5A
Battery continuous discharging current(23±2℃) (23±2℃)	45A
Battery discharge peak current(5s)(23±2℃)(5s)(23±2℃)	150A
Battery system insulation resistance testing value(mΩ)	≥20mΩ
Insulation Resistance Testing(Ω)	≥20MΩ
Waterproof grade of battery case	IP65
Battery system waterproof grade	IP65
Cooling system	Air cool
