/ Application Scenarios
Industry and Commerce
/ Product Highlights
Advanced Battery Management System (iBMS)
- The innovative iBMS offers tailored and precise management of battery life cycles.
State-of-the-Art SOC Correction Algorithm
- Enhances SOC accuracy by 3% in incomplete discharge scenarios.
- The SOP correction algorithm extends battery life by 15%.
Comprehensive Cloud Security Alerts
- Full-spectrum security alerts operate 24/7 to guarantee battery safety.
Efficient Temperature Control
- Thorough thermal simulation analysis covers various scenarios, ideal for complex environments.
/ Product Description
*Standard: PCS,DCDC | Optional: MPPT,STS, ATS, Charging Pile (22kw)
| Model |

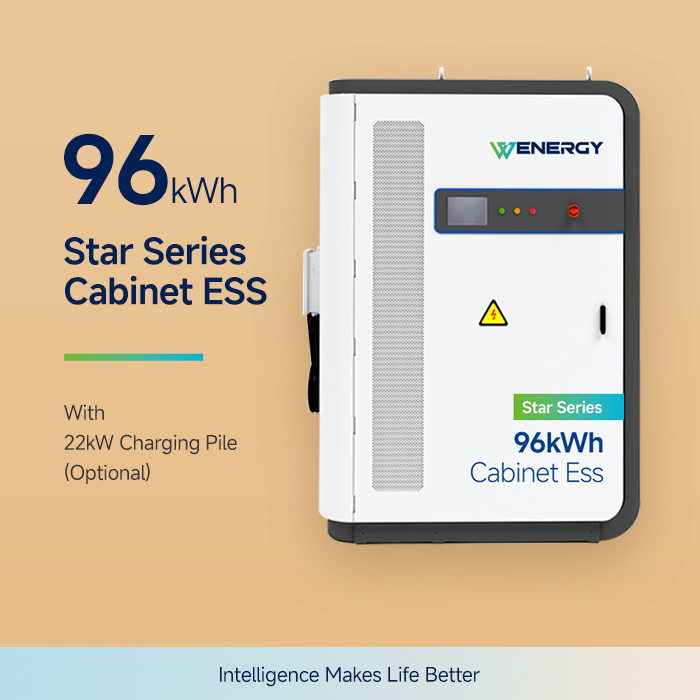

Star192 96.46kWh (Integrated Solar,Storage,and Diesel Charging System) |
| Rated Energy |
96.46kWh |
| Voltage Range |
240~350.4V |
| Rated Power |
125kW |
| Rated Output Frequency |
50Hz |
| IP Protection Grade |
IP54 |
| Corrosion-proof Grade |
C4H |
| Cooling Type |
Liquid Cooling |
| Noise |
<65dB(1m Away from System) |
| Dimension |
W1600*D1435*H2200mm |
| Communication Interface |
Ethernet |
| Communication Protocol |
Modbus TCP/IP |
| *Standard:PCS,DCDC I Optional:MPPT,STS,ATS,Charging Pile |
/ System Configuration
The system consists of a battery system (2 to 4 packs), a power conversion system (PCS), a photovoltaic converter (MPPT), a voltage converter (DCDC), a parallel grid and off-grid switch (STS), a multi-power transfer switch (ATS), an AC charging pile, a liquid cooling unit, a fire suppression system, an EMS (Energy Management System), and a power distribution unit (PDU), among other components. The system features external communication capabilities and is designed for safe and stable operation over extended periods.
/ System Layout
| No. |
Number |
Name |
| 1 |
A |
Load Breaker 01 (optional) |
| 2 |
B |
Load Breaker 02 |
| 3 |
C |
Main Breaker 01 |
| 4 |
D |
Main Breaker 02 (optional) |
| 5 |
E |
STS (optional) |
| 6 |
F |
Photovoltaic Converter MPPT (optional) |
| 7 |
G |
Voltage Converter DCDC |
| 8 |
H |
PCS |
| 9 |
I |
Liquid Cooling Unit |
| 10 |
J |
EMS |
| 11 |
K |
PDU |
| 12 |
L |
Battery System (optional 2 to 4 packs) |
| 13 |
M |
Multi-Power Transfer Switch ATS (optional) |
| 14 |
N |
Fire Suppression System |
| 15 |
P |
Display Screen |
| 16 |
Q |
Indicator Light |
| 17 |
R |
Emergency Stop Button |
| 18 |
S |
AC Charging Pile (optional) |
/ Certifications
● International General Certifications
UN38.3,IEC 62619,IEC/EN 62619
● Functional Safety and Energy Efficiency Certifications
IEC 60730-1,IEC 63056,IEC/EN 61000
● Structural and Protection Certifications
IEC 60529
● European Market Certifications
IEC 62040 or 62477,RF/EMC,UKCA (IEC 62477-1),UKCA (CE-EMC Transfer)
● North American Market Certifications
UL1973,UL9540,UL9540A
