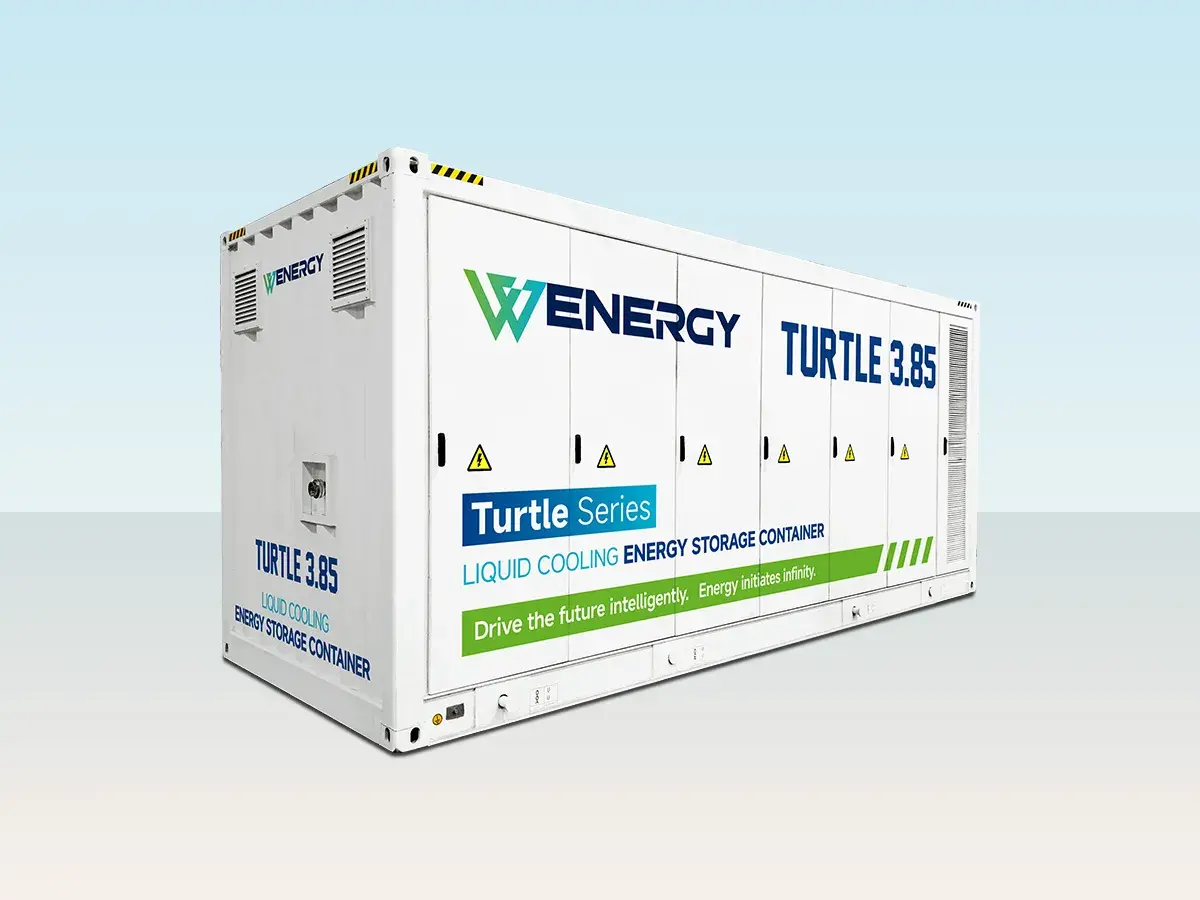

3.85MWh Liquid-itutu Litiumu Ion Apoti Ipamọ Batiri
Awọn ohun elo
IwUlO-Iwọn Ibi Agbara
Irun oke, isọdọtun isọdọtun (awọn oko oorun/afẹfẹ), ati ilana igbohunsafẹfẹ akoj.
Iṣowo & Iṣẹ-iṣẹ (C&I)
Agbara afẹyinti fun awọn ile-iṣelọpọ/awọn ile-iṣẹ data, idinku idiyele ibeere, ati atilẹyin microgrid.
Latọna/Pa-Grid Ojula
Awọn iṣẹ iwakusa, awọn grids erekusu, ati awọn ile-iṣọ tẹlifoonu ti o nilo agbara-giga, ibi ipamọ itọju kekere.
Awọn ọna agbara pajawiri
Awọn amayederun to ṣe pataki (awọn ile-iwosan, awọn ipilẹ ologun) pẹlu idinku ina-idahun iyara ati itutu agba omi.
Awọn Ifojusi bọtini
Iwuwo Agbara giga & Agbara Rọ
-
Titi di 3.85MWh ninu apoti 20ft kan - ibi ipamọ ti o lagbara ni ifẹsẹtẹ iwapọ.
-
Apẹrẹ iwọn jẹ ki o ọtun-iwọn agbara fun yatọ si ise agbese aini.
Aabo & Igbẹkẹle Itumọ ti
-
Olona-Layer Idaabobo ina pẹlu ibojuwo akoko gidi fun aabo 24/7.
-
Smart omi itutu ntọju iṣẹ iduroṣinṣin lati otutu otutu si ooru giga.
-
BMS ti ilọsiwaju ṣe aabo eto fun igbẹkẹle igba pipẹ.
Ṣetan fun Eyikeyi Akoj & Ayika
-
Ailokun akoj Integration pẹlu agbaye PCS awọn ajohunše.
-
Iṣẹ ṣiṣe ti a fihan paapaa ni awọn giga giga ati awọn aaye ti o nija.
-
Apọju agbara meji & Soke rii daju iṣẹ ṣiṣe ti ko ni idilọwọ.
Ọja paramita
| Awoṣe | Turtle CL3.85 |
| Batiri Iru | LFP 314 Ah |
| Agbara agbara | 3.85 MWh |
| Ti won won Agbara | 2 MW |
| DC won won Foliteji | 1228.8V |
| DC Foliteji Range | 1075.2V ~ 1382.4V |
| O pọju. Ṣiṣe ti System | 89% |
| IP Idaabobo Ipele | IP55 |
| Ìwọ̀n (kg) | 36,000 |
| Itutu agbaiye | Liquid Itutu |
| Ariwo | <75dB (1m jinna si Eto naa) |
| Ibaraẹnisọrọ Interface | Ti firanṣẹ: LAN, CAN, RS485 |
| Ilana ibaraẹnisọrọ | Modbus TCP |
| Ijẹrisi eto | IEC 60529, IEC 60730, IEC 62619, IEC 62933, IEC 62477, IEC 63056, IEC/EN 61000, UL 1973, UL 9540A,UL 9540, CE Marking, UN 38.3, Ijẹrisi TÜV, Ijẹrisi DNV, NFPA69, FCC Apá 15B. |
