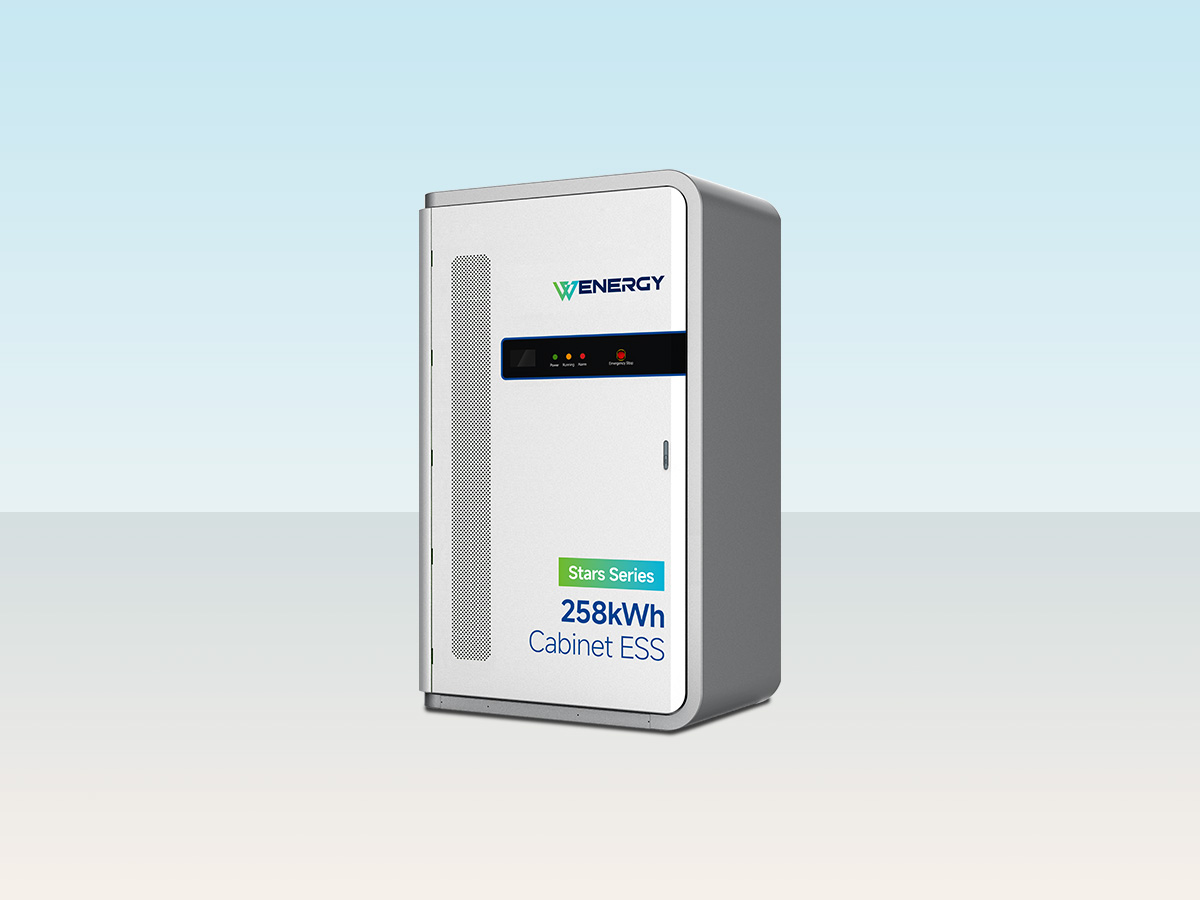

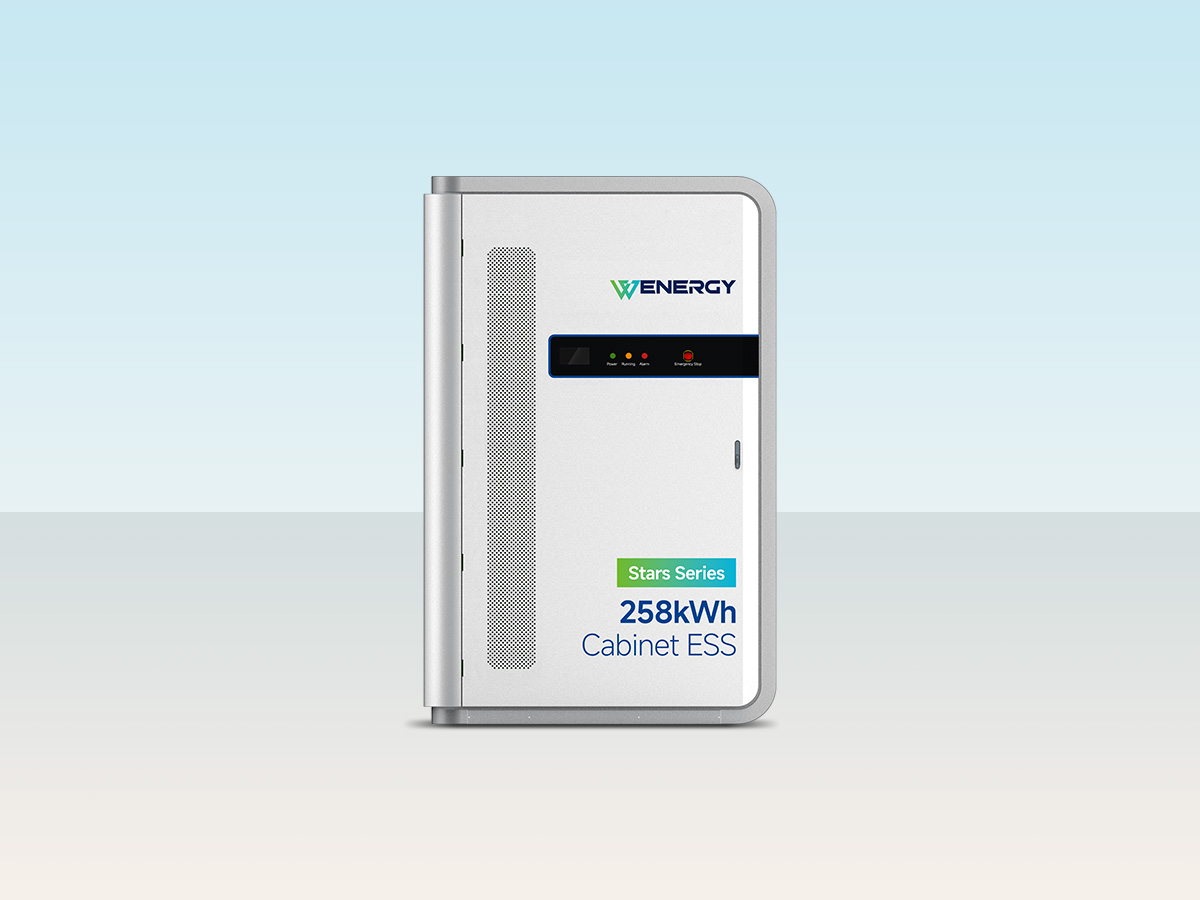

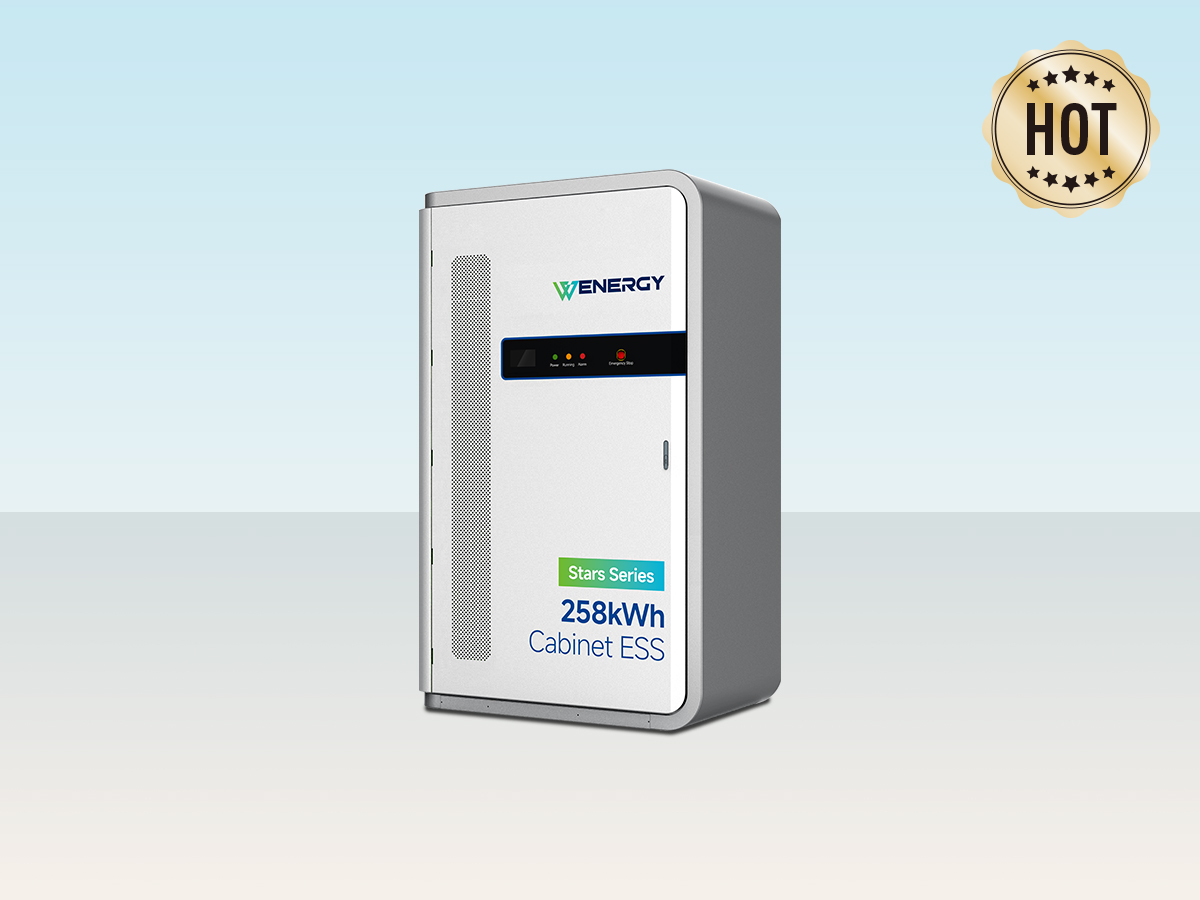

All-in-one ESS Cabinet

Applications

Commercial & Industrial (C&I) Energy Management

Peak shaving, demand charge reduction, and backup power for factories, data centers, and retail facilities.

Renewable Integration

Smoothing solar/wind power output and providing ancillary services for microgrids.

Critical Infrastructure

Uninterruptible power supply (UPS) for hospitals, telecom towers, and remote sites requiring high reliability.

EV Charging Hubs

Buffering high-power charging loads to reduce grid strain.

Key Highlights

High-Efficiency, Scalable Energy Storage

• Modular Energy Cluster: 6 × 43kWh battery packs in series form a 258kWh rated capacity system, designed for parallel expansion to meet scalable energy demands .
• Optimized Energy Utilization: Achieves >89% round-trip efficiency with intelligent BMS management, ensuring minimal energy loss during charge/discharge cycles .
• Compact Industrial Design: All-in-one IP54-rated cabinet (1,588 × 1,380 × 2,450 mm) integrates thermal, electrical, and safety systems for space-efficient deployment .

Advanced Safety & Thermal Management

• Dual Fire Suppression: Pack-level (144g aerosol/2m³) and cabinet-level (300g aerosol/3m³) protection with 5-in-1 detection(temperature/smoke/H₂/CO).
• Intelligent Liquid Cooling: Maintains optimal battery temperature (-15°C to 55°C) via 8kW cooling capacity(R134a refrigerant) and 60L/min flow rate.
• Two-Tier BMS: Real-time monitoring (±0.5% voltage accuracy) with safeguards against overcharge, short circuit, and insulation faults.

Grid-Ready Performance

• Wide Voltage Range: DC side 720–1,000V, AC side 300–460V, compatible with global grid standards.
• High Power Output: 125kW rated(150kW peak) bidirectional PCS, supporting three-phase four-wire
• Smart EMS Integration: Cloud-enabled energy management with Modbus TCP/CAN2.0protocols for real-time data analytics and AI-driven optimization.
