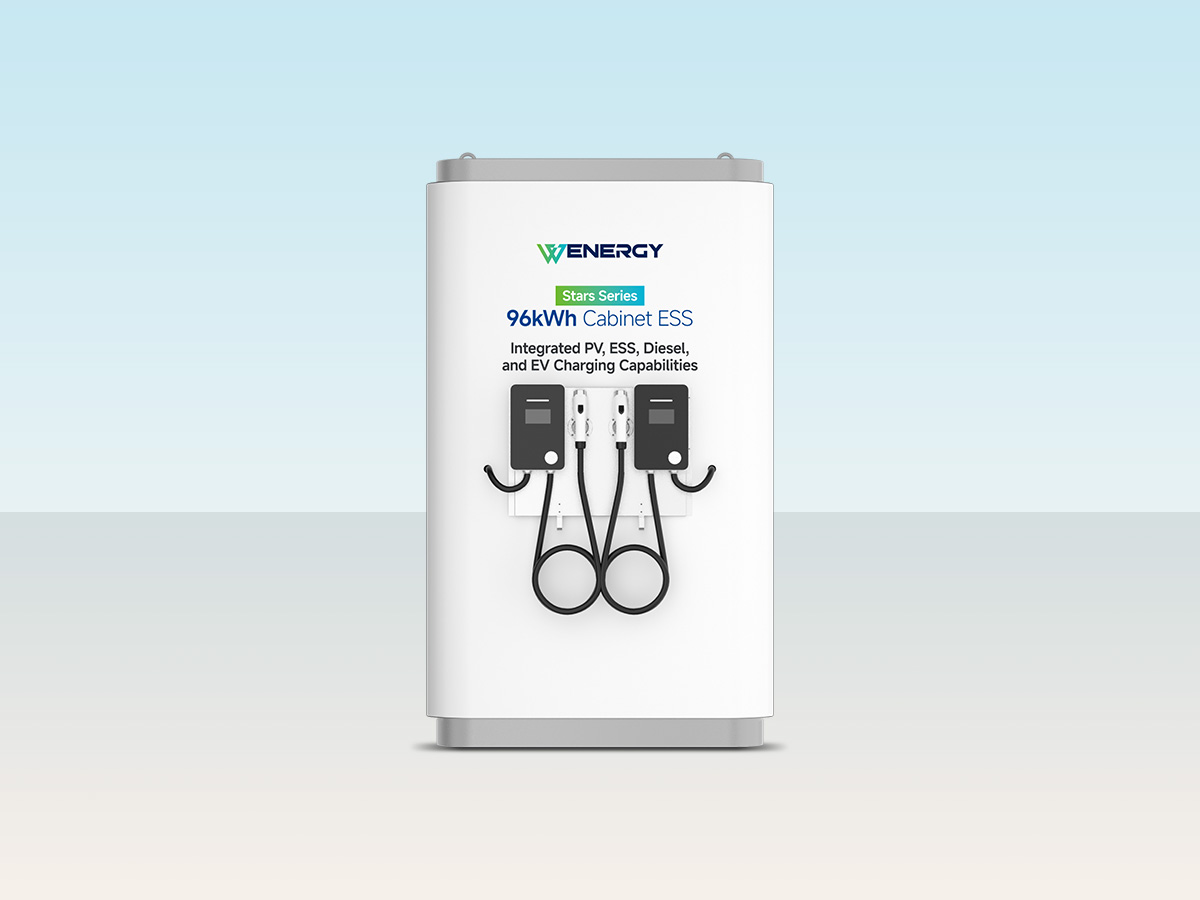

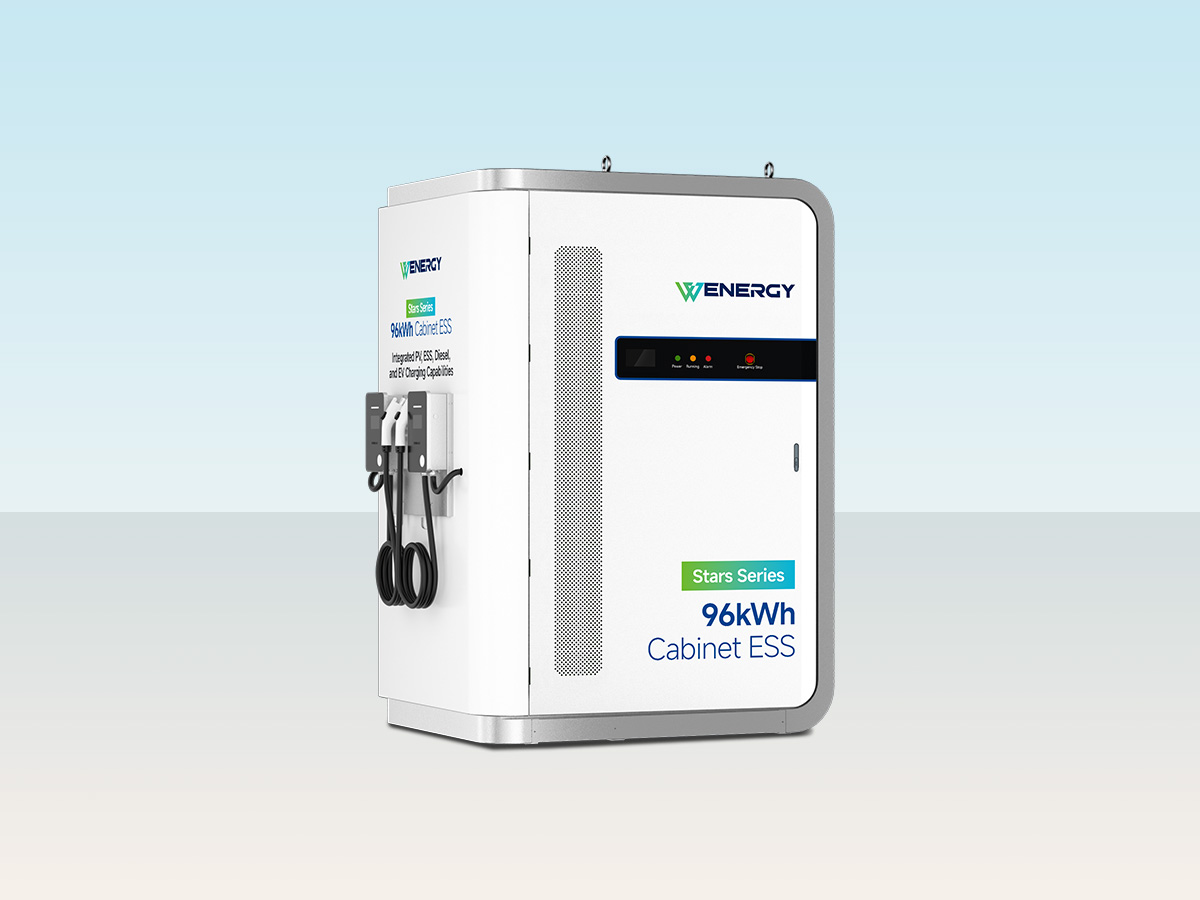

Hybrid ESS Cabinet

Applications

Commercial & Industrial (C&I) Energy Solutions

• Peak Shaving & Demand Charge Reduction: Ideal for factories, data centers, and retail facilities to optimize energy costs by storing off-peak power and discharging during high-rate periods.
• Backup Power for Critical Loads: Ensures 99.99% uptime for hospitals, telecom hubs, and manufacturing plants, with rapid switch to off-grid mode during outages.

Renewable Energy Integration

• Solar/Wind Smoothing: Mitigates intermittency in PV and wind farms, providing stable power input to grids through intelligent charge/discharge management.
• Microgrid Systems: Enables standalone energy solutions in remote areas (e.g., islands, rural communities) with hybrid solar-diesel setups.

Grid Services & EV Infrastructure

• Frequency Regulation & Peak Load Shifting: Supports grid operators (TSO/DSO) with fast-response energy storage for stability and auxiliary services.
• EV Charging Station Buffering: Reduces grid stress at high-power chargers by absorbing peak loads, optimizing energy costs for EV fleet operators.

Industrial Power Quality Optimization

• Reactive Power Compensation: Improves power factor (>0.99) and reduces harmonic distortion in industrial zones, enhancing efficiency and compliance with grid standards.

Optional Multiple Configurations

(Integrated PV, ESS, Diesel and EV Charging Capabilities)

• MPPT

Four in - cabinet PV interfaces with built - in inverter—no extra inverter needed, cuts costs & simplifies setup.

• STS

Ensures automatic and seamless switching between grid and off-grid modes for uninterrupted power.

• ATS

Connects grid and backup generators for flexible power input.

• Charging Gun

Supports electric vehicle (EV) charging.

Key Highlights

Modular Scalability & High Efficiency

• Flexible Capacity Design

Configuration: Composed of 2 battery packs (each 48.2kWh) connected in series, forming a 96.46kWh rated energy storage system .

Modular Architecture: Supports parallel expansion for future capacity upgrades, but the 96KWh configuration is optimized for small-to-medium projects .

• Exceptional Cycle Efficiency

Round-Trip Efficiency: >89% (achieved via intelligent BMS management to minimize energy loss during charge/discharge cycles) .

BMS Features: Two-tier architecture (BMU/BCU) with ±0.5% voltage/current accuracy and passive cell balancing .

• Electrical Parameters

DC Voltage Range: 240–350.4V (nominal voltage: 307.2V) .

Power Conversion: Paired with a 125kW rated PCS (Power Conversion System) for grid integration, supporting bidirectional power flow (charge/discharge) .

Multi-Layered Safety & Compliance

• Dual Fire Suppression System

Pack-Level Protection: Each battery pack includes a 144g aerosol fire extinguisher (2m³ coverage, activation ≤12 seconds) to suppress thermal runaway at the source .

Compartment-Level Protection: The system cabinet is equipped with a 300g aerosol system (5m³ coverage) linked to thermal/smoke/H₂/CO detectors for rapid fire response .

• Physical & Electrical Safeguards

Enclosure: IP54-rated for dust and water ingress protection, suitable for outdoor or harsh indoor environments .

BMS Protections: Overcharge, over-discharge, overtemperature, short circuit, and insulation fault safeguards .

• Regulatory Compliance

Meets GB/T 36276 (lithium battery safety), GB/T 34120 (PCS standards), and IEC electromagnetic compatibility (EMC) requirements .

Intelligent Thermal & Grid Management

• Dynamic Liquid Cooling

Cooling System: 3kW liquid cooling unit with R410A refrigerant and 40L/min flow rate, maintaining battery temperatures between -30°C to 55°C .

Heating Module: 2kW auxiliary heating for cold climates, ensuring performance in low-temperature environments .

• Grid Integration & Control

Dual-Mode Operation:

Grid-Connected: Optimizes energy usage via TOU (time-of-use) pricing or renewable integration.

Off-Grid: Seamless switch to standalone mode via STS (Static Transfer Switch) within ≤10ms during outages .

• EMS (Energy Management System)

Cloud-connected with Modbus TCP/IP protocol for real-time monitoring, AI-driven load scheduling, and integration with PV systems or EV chargers .
