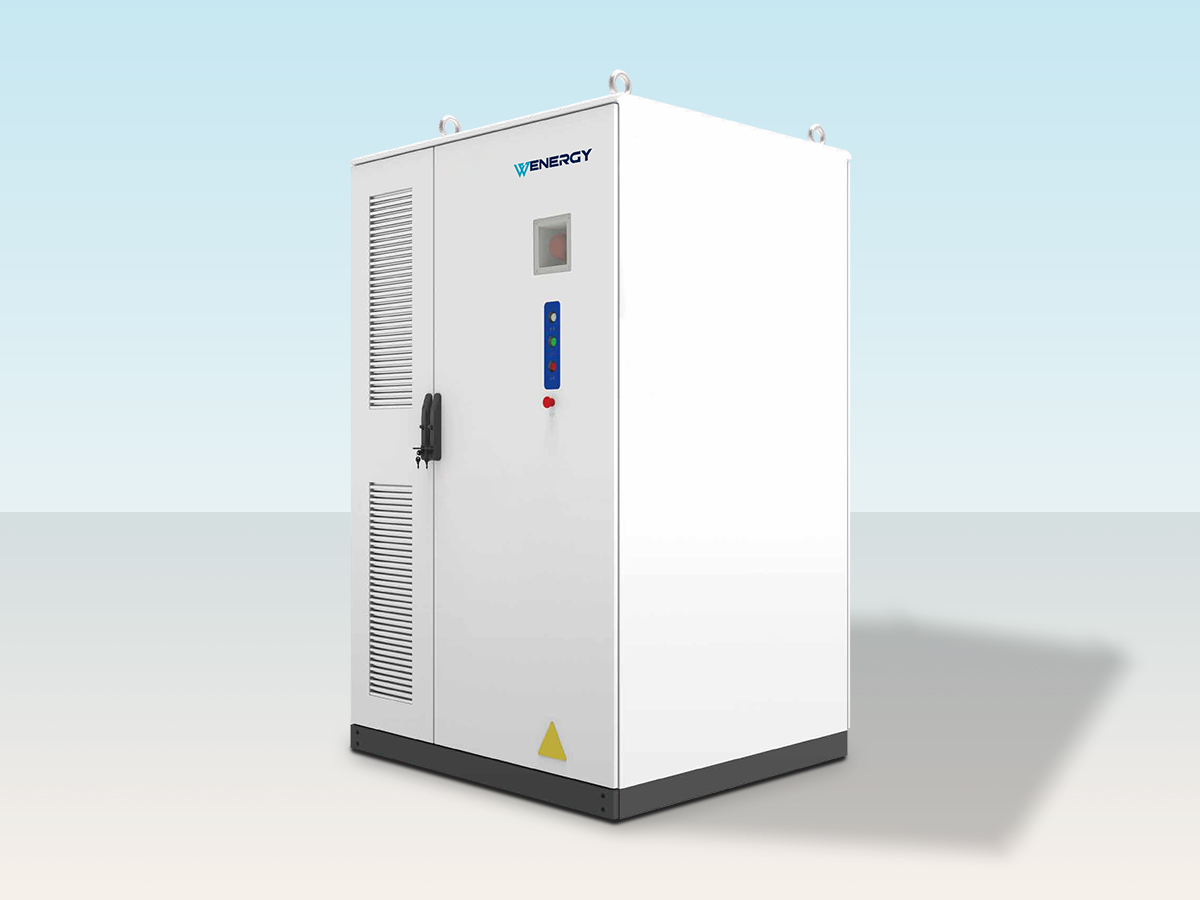

Stars CL418 Series Cabinet ESS
Key Highlights
- Compact
2m²footprint only, easy transportation &fast installation.
- Efficient Cooling
Optimized in-PACK duct design ensures high-efficiency cooling with reduced energy consumption.
- Long Cycle Life
Over 8,000 cycles, providing excellent long-term battery performance.
- High Integration
418kWh energy in one cabinet with remarkable endurance.
- Flexible Expansion
Modular design,
simplified parallel expansion.
- Ultimate Safety
In-PACK fire warning and protection with aerosol, preventing heat diffusion and runaway.
Product Parameters
| Model | Stars CL418-A400 | Stars CL418-A690 | Stars CL418-A800 | |
| DC Side | Cell Type | LFP/314Ah | ||
| Pack Configuration | 52.248kWh/1P52S | |||
| System Configuration | 418kWh/1P416S | |||
| Rated DC Voltage | 1331.2V | |||
| DC Voltage Range | 1164.8～1497.6V | |||
| Max.Charge/Discharge Rate | 0.25P | 0.5P | 0.5P | |
| Max.Depth of Discharge | 100%(25±2℃) | |||
| AC Side | Rated Output Power | 100kW | 210kW | 210kW |
| Rated AC Voltage | 400V | 690V | 800V | |
| AC Voltage Range | -15%～+10% | |||
| Grid Type | 3W+PE | |||
| Rated Frequency | 50Hz/60Hz | |||
| Power Factor | 0.991-1~+1 | |||
| THDi | ≤3% | |||
| DC Ratio | <0.5%lpn | |||
| General | Max.Round Trip Efficiency | 89% | ||
| Cycle Life | ≥8,000 cycles | |||
| Communication | Modbus TCP/IP | |||
| Fire Suppression System | Aerosol | |||
| Ingress Rating | IP55 | |||
| Cooling | Liquid cooling+Forced air cooling | |||
| Operating Temperature | -25℃~55℃(Derating after 45℃) | |||
| Anticorrosion Rating | C4(C5 optional) | |||
| Humidity | 0~95%RH (non-condensing) | |||
| Noise | ≤80dB | |||
| Altitude | 3000m(Derating above 2000m) | |||
| Dimensions(W*D*H) | 1,500*1,350*2,400 mm | |||
| Weight | 3800kg | |||
| Safety/EMC | UN38.3,IEC62619,IEC63056,IEC62477-1,IEC61000-6-2/4 | |||
| Grid code | EN50549-1-10,EN50549-2/-10,PN^EN-50549-1-2 | |||
